Expeto xControl⚓︎
xControl is a multi-tenant service hosted by Expeto or deployed in an MNO network that gives enterprises centralized management of their network segments and connected assets across a single control plane.
It provides visualization and control for all public and private networks, network monitoring, and secure connection to public networks.
All functionality exposed in the web interface is also available via the REST API.

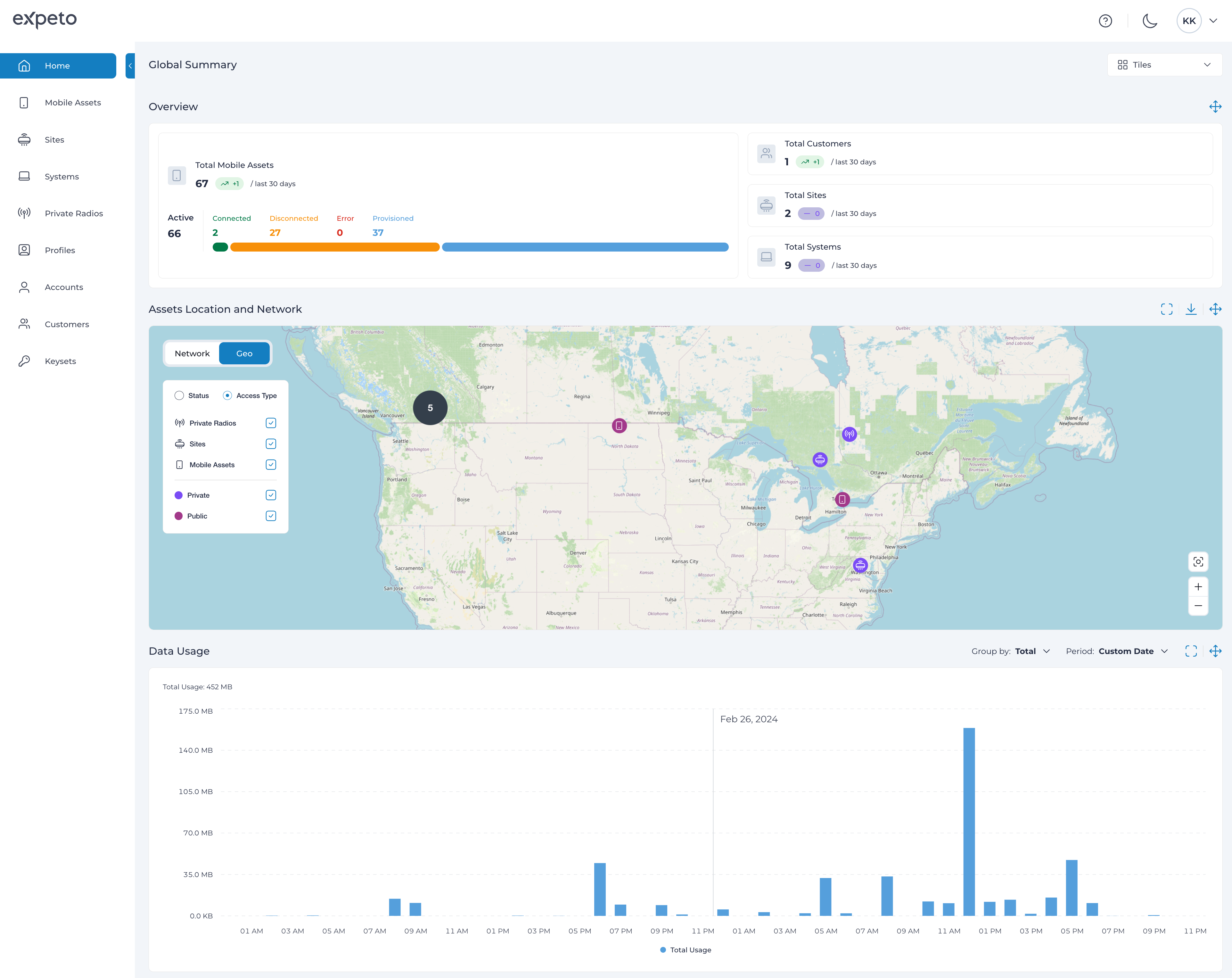

Expeto xControl is a cloud-based application accessed through a web browser GUI or through REST API calls. It provides a single control plane for SIM management, networking, security, and routing of all devices and data across private and public mobile networks world-wide. The GUI interface features include an interactive dashboard, intuitive navigation, real-time updates, and deep search. As an administrator, you create and manage the systems, customers, and subscribers of your sites. You can monitor network health and subscriber status, data usage and throughput levels. You set thresholds to enforce data limits, create system profiles, and set custom network parameters.
Common tasks performed with Expeto xControl include:
- SIM and device provisioning
- Performing bulk actions (import, update, delete) to Subscribers
- Managing Subscribers
- Creating System Profiles which assign different services levels to Subscribers
- Creating Roaming Profiles and Carrier Groups to restrict 3GPP roaming access
- Segmenting Networks by creating Systems and assigning subnet ranges
- Managing Accounts, Customers and Sites
- Managing Carriers and Carrier Groups
- Adding and enabling Private Radios (eNodeB/gNodeB)
- Setting Data limits (AMBR values)
- Network monitoring through dashboard panels
Role Based Permissions⚓︎
The Expeto xControl GUI and API is multi-tenant, supporting delegated administration of functions. Accounts can have nested customers allowing for deep hierarchies. Subordinate accounts only have access to functions and data within the restricted domain governed by the Role Based Access Control (RBAC) privilege set.
Each account used to log in to Expeto xControl has an assigned role that determines access and permissions to features. Roles are pre-defined and selected during account creation or update.
